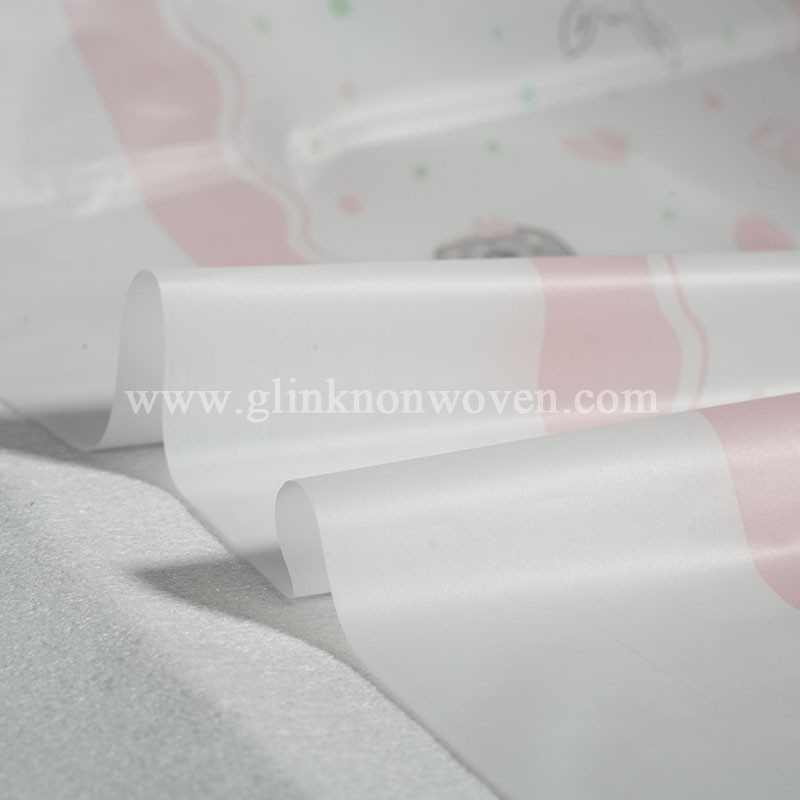

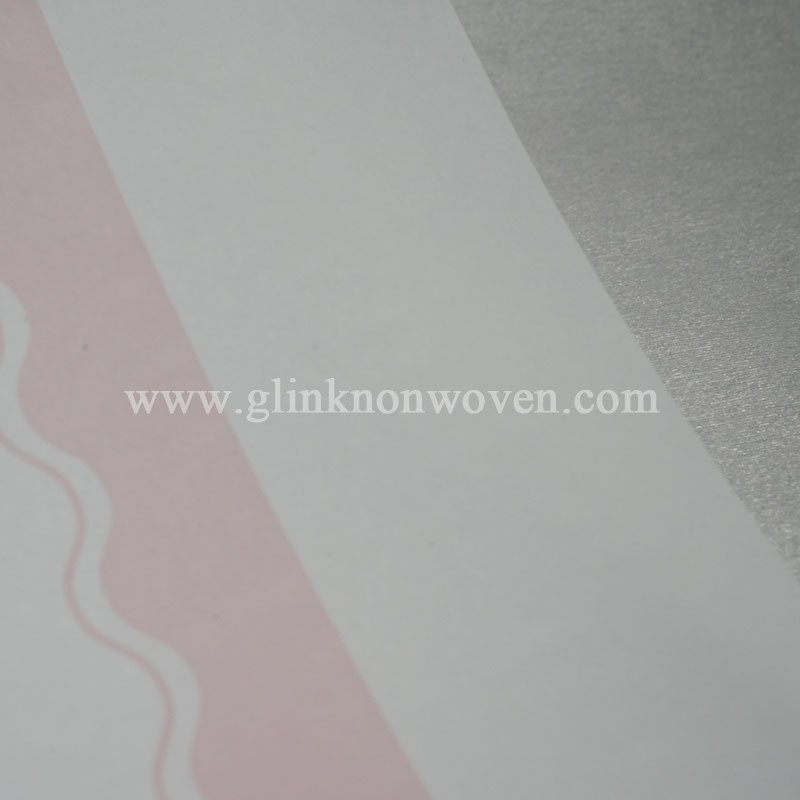

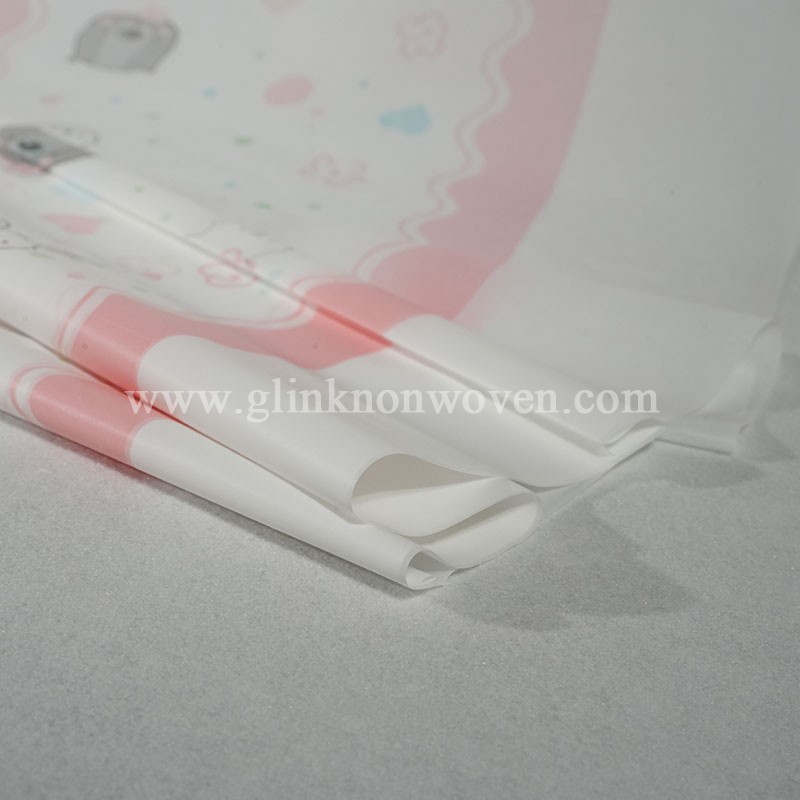

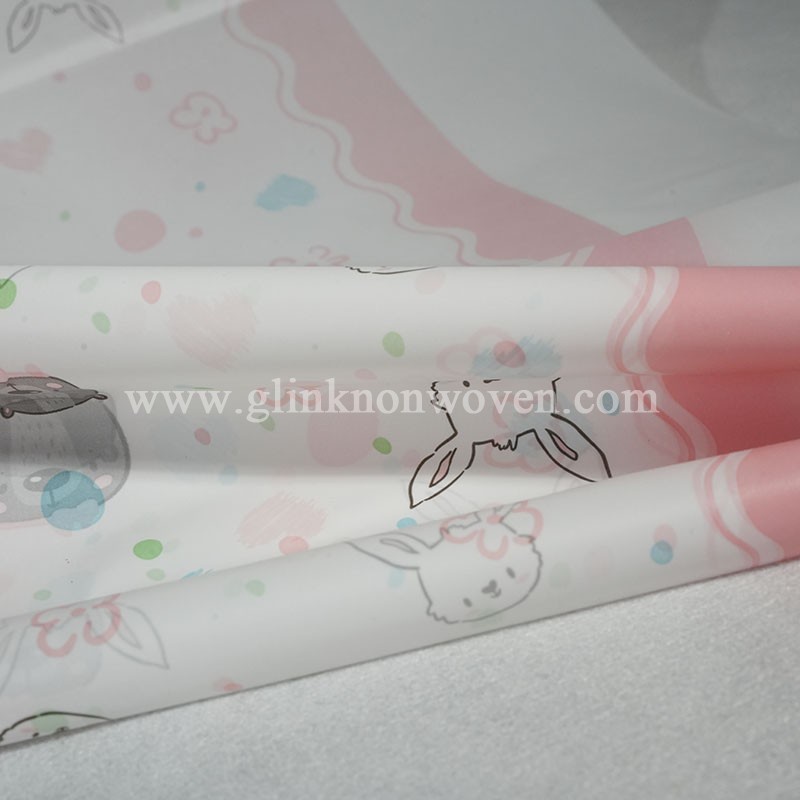

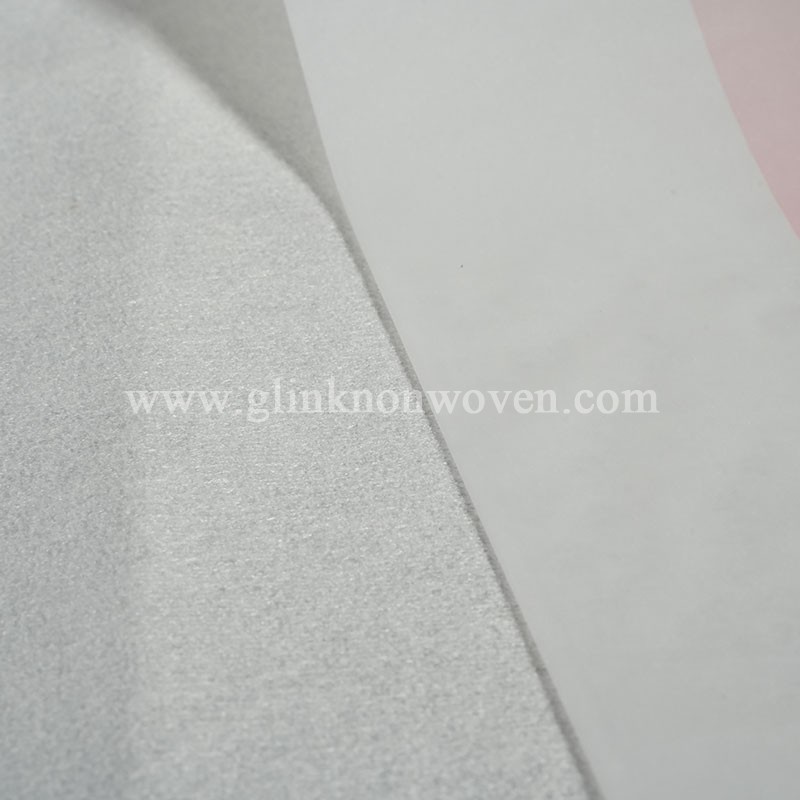

The materials of non breathable PE film is polyethylene (PE). Polyethylene is a synthetic resin made by polymerizing ethylene monomers. It has good heat resistance, chemical resistance, and mechanical properties.
Material :
PolyethyleneBasic weight :
15-30gsmWidth :
CustomizedColor :
CustomizedOuter roll diameter :
460mm-580mm, CustomizedProduction process :
CastingHardness :
SoftPrinting :
CustomizedUsage :
BacksheetApplication :
Baby diaper, adult diaper, sanitary napkinPacking details :
In the roll, inside with paper core, wrapping by transparent film and paper board; Strandard export packingPayment terms :
T/T, L/C at sight, DP at sightDelivery time :
7-15 days after receipt of the deposit or L/CMinimum order quantity :
1000.00kgsProduct Description
The role of the non-breathable PE film backsheet (also called leak-proof film or bottom film) in diapers is mainly to prevent urine leakage and ensure the absorption and protection performance of diapers. Specifically, the roles of non-permeable films include:
Prevent urine leakage: non breathable poly PE film for diaper usually use impermeable materials (such as polyethylene or polypropylene films), which can effectively prevent urine from leaking from the bottom or sides of diapers, protect baby's skin, and prevent urine from staining clothes or sheets.
Keep dry: The leak-proof film helps diapers prevent liquid from leaking out after absorbing urine, keep the inner layer dry, and reduce the contact between urine and baby's skin, thereby reducing the risk of diaper rash and skin irritation.
Product Attributes
| Items | Requirement | Result | Judging | |
| Basic weight | 18±1.5 | 17.8 | OK | |
| Width | 170±2 | 170.0 | OK | |
| Tensile strength | MD | ≥7.0 | 7.88 | OK |
| CD | ≥4.0 | 5.78 | OK | |
| Breaking elongation | MD | ≥60 | 577 | OK |
| CD | ≥60 | 616 | OK | |
| Ash (%) | ≤20 | 14.6 | OK | |
| Anti hydrostatic pressure (Pa) | ≥3500 | 4269 | OK | |
| Corona (dyne) | ≥36 | 38 | OK | |
| Material was suitable to use in hygiene product. | ||||
Product Application
PE non breathable film is the key raw materials for diapers making, which can be used in the production of baby diapers, adult diapers, disposable nursing pads and sanitary napkins.
Factory Workshop
In order to improve the comfort and functionality of diapers, PE casting film is sometimes used in combination with other materials such as non-woven fabric. This composite material has both the waterproof performance of PE film and the softness and breathability of non-woven fabric (when using a breathable PE film+non-woven fabric composite material as the base film).
Lab & Testing
Our factory has a professional R&D technical team, industry-leading production capacity and technology. The raw materials are double-verified to control the quality from the source, reducing the trial and error costs of overseas customers and ensuring stable quality.
Related Products
Our company specializes in spunbond nonwoven, SMMS hydrophobic nonwoven, thermal nonwoven, hot air nonwoven, frontal tape, side tape, fluff pulp, sap, hot melt glue, spandex and other raw materials for baby diaper, sanitary napkin, adult diaper, underpads and pull up diapers. You can contact us for more details.
Warehouse
We have a modern warehouse of over 10,000 square meters, providing customers with “one station” services, which can mix load different kinds of raw materials, which can help our customers to reduce cost.
Packing & Shipment
Our integrity, strength and product quality are recognized by the industry, and our products are also exported to Southeast Asia, Africa, South America and so on. We firmly believe that with a professional and capable service team and an integrity-based business philosophy, we will continue to create and output value for our customers, and will be able to work hand in hand with our partners to create a brilliant future.
Our Service
1. Cost analysis and cost reduction plan for the entire set of raw materials for finished products
2. One-stop procurement service for hygiene products raw materials
3. Free safety inventory in large warehouses and free consolidation of multiple materials
4. Provide a complete set of process reports and photos for orders
5. Monthly analysis report on the Chinese raw material market
6. Technical support for equipment
7. Raw material process solutions
8. Design and customization of special edition raw materials
