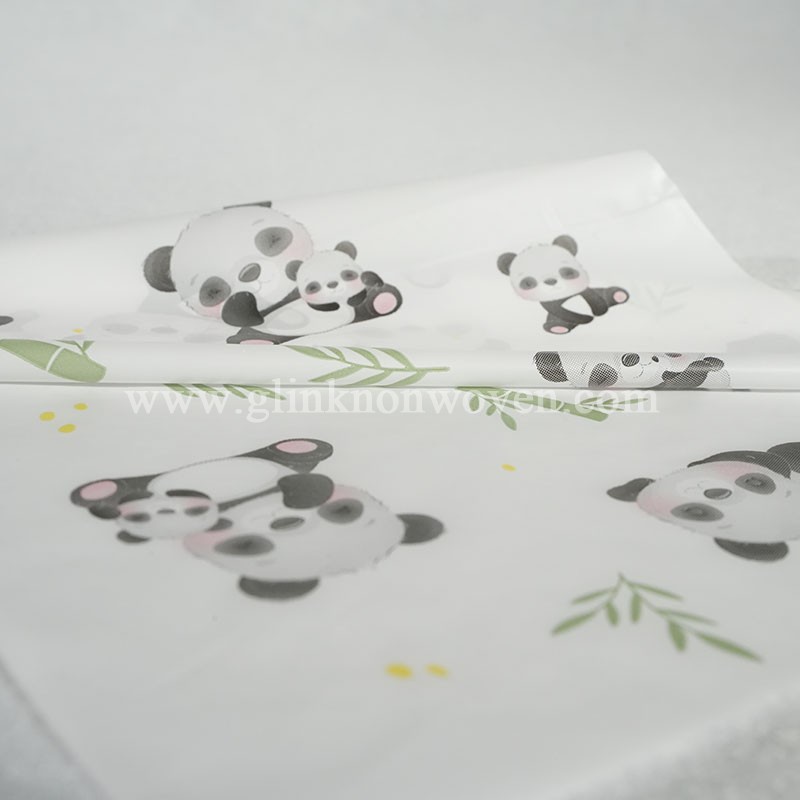

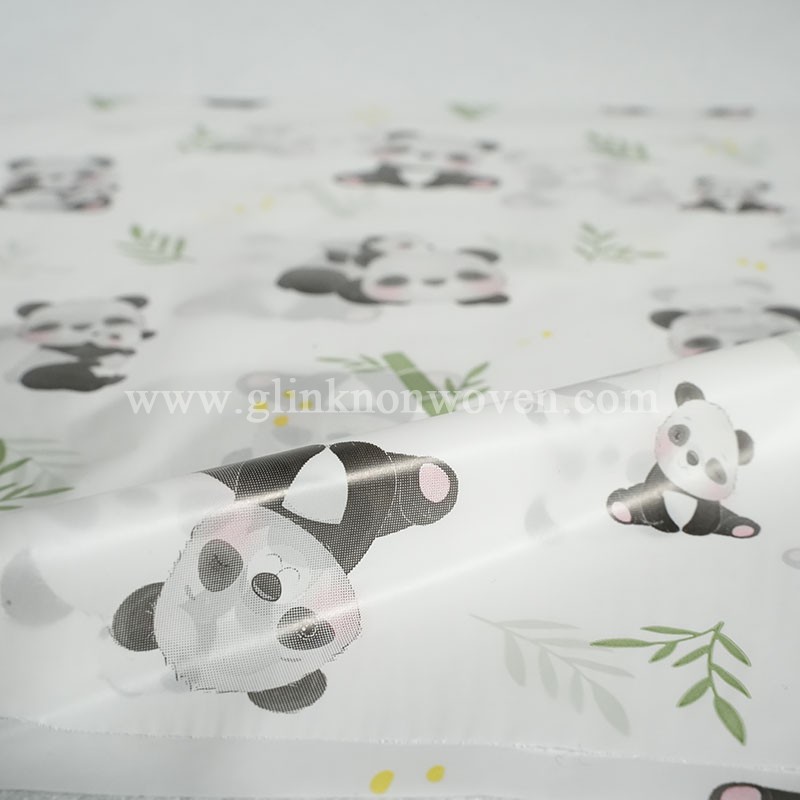

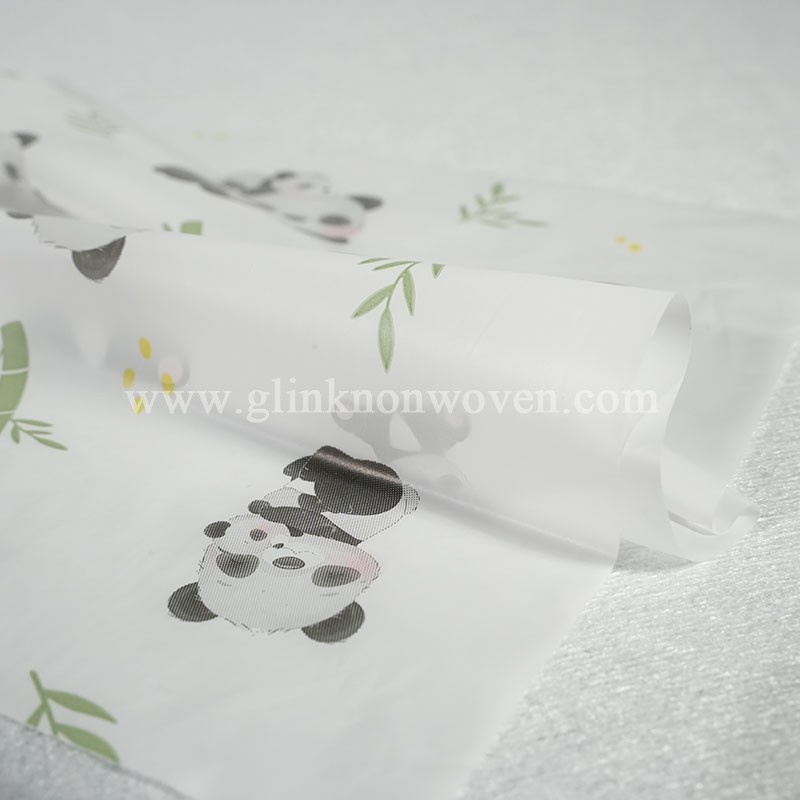

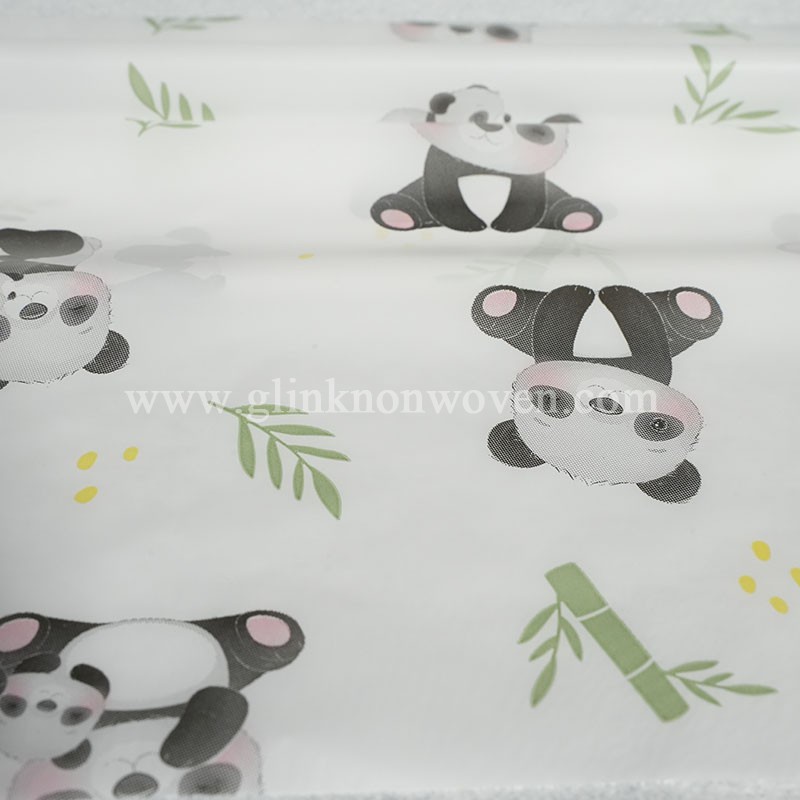

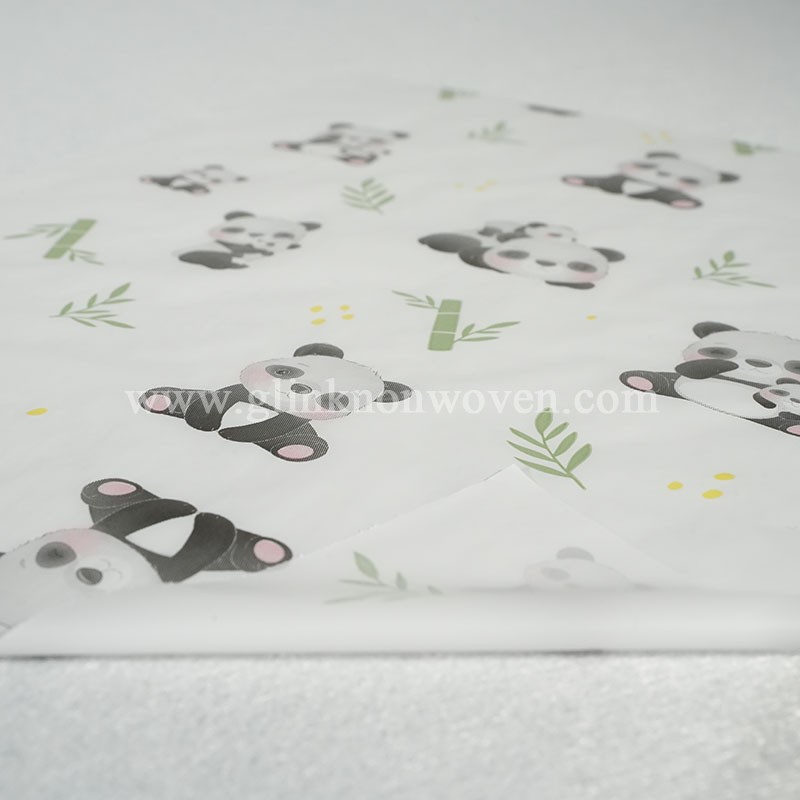

Breathable PE printed film customized designs backsheet film raw materials for baby diaper
The manufacturing process of dipaer breathable PE film back sheet involves adding inert fillers to polyethylene (PE) or polypropylene (PP) carriers, followed by film making and stretching processes to form thin films with microporous structures. These micropores allow water vapor to circulate between the two sides of the film, thereby regulating the humidity environment and achieving a breathable effect.
Material :
50% Polyethylene+50% calcium carbonateBasic weight :
15-32gsmWidth :
CustomizedColor :
CustomizedOuter roll diameter :
460mm-580mm, CustomizedProduction process :
CastingHardness :
SoftPrinting :
CustomizedUsage :
BacksheetApplication :
Baby diaper, adult diaper, sanitary napkinPacking details :
In the roll, inside with paper core, wrapping by PE film and paper board; Strandard export packingPayment terms :
T/T, L/C at sight, DP at sightDelivery time :
7-15 days after receipt of the deposit or L/CMinimum order quantity :
1000.00kgsProduct Description
The role of PE breathable film in diapers mainly includes preventing urine leakage and providing good breathability. The bottom layer of diapers is usually made of PE film or a combination of PE film and non-woven fabric. The use of breathable film allows diapers to remain dry while effectively preventing urine leakage. The breathability of the raw material PE film with design printing enables diapers to better regulate humidity and reduce discomfort for babies during use. channel length, and is usually measured by water pressure resistance.
Product Attributes
| Items | Requirement | Result | Judging | |
| Basic weight | 18±1.5 | 17.5 | OK | |
| Width | 190±2 | 190.0 | OK | |
| Tensile strength | MD | ≥5 | 9. 86 | OK |
| CD | ≥2 | 2.10 | OK | |
| Breaking elongation | MD | ≥100 | 210 | OK |
| CD | ≥200 | 409 | OK | |
| Anti hydrostatic pressure (Pa) | ≥3000 | 3712 | OK | |
| Corona (dyne) | ≥38 | 38 | OK | |
| Breathability (g/24h/㎡) | ≥800 | 2912 | OK | |
| Material was suitable to use in hygiene product. | ||||
Product Application
PE breathable film raw materials are the key raw materials for diapers making. It can be used in the production of baby diapers, adult diapers, disposable nursing pads and sanitary napkins.
Factory Workshop
Breathable PE film in diapers is mainly based on the micro porous structure and the humidity gradient pressure difference formed by the difference in water vapor concentration. China diaper backsheet PE film is formed by combining inorganic substances with stretching process to form micro pores with appropriate size and uniform distribution.
Lab & Testing
Our factory has a professional R&D technical team, industry-leading production capacity and technology. The raw materials are double-verified to control the quality from the source, reducing the trial and error costs of overseas customers and ensuring stable quality.
Related Products
Our products cover spunbond nonwoven, SMMS hydrophobic nonwoven, thermal nonwoven, hot air nonwoven, frontal tape, side tape, fluff pulp, sap, hot melt glue, spandex and other raw materials for baby diaper, sanitary napkin, adult diaper, underpads and pull up diapers. You can contact us for more details.
Warehouse
We have a modern warehouse of over 10,000 square meters, providing customers with “one station” services, which can mix load different kinds of raw materials, which can help our customers to reduce cost.
Packing & Shipment
Our integrity, strength and product quality are recognized by the industry, and our products are also exported to Southeast Asia, Africa, South America and so on. We firmly believe that with a professional and capable service team and an integrity-based business philosophy, we will continue to create and output value for our customers, and will be able to work hand in hand with our partners to create a brilliant future.
Our Service
1. Cost analysis and cost reduction plan for the entire set of raw materials for finished products
2. One-stop procurement service for hygiene products raw materials
3. Free safety inventory in large warehouses and free consolidation of multiple materials
4. Provide a complete set of process reports and photos for orders
5. Monthly analysis report on the Chinese raw material market
6. Technical support for equipment
7. Raw material process solutions
8. Design and customization of special edition raw materials
